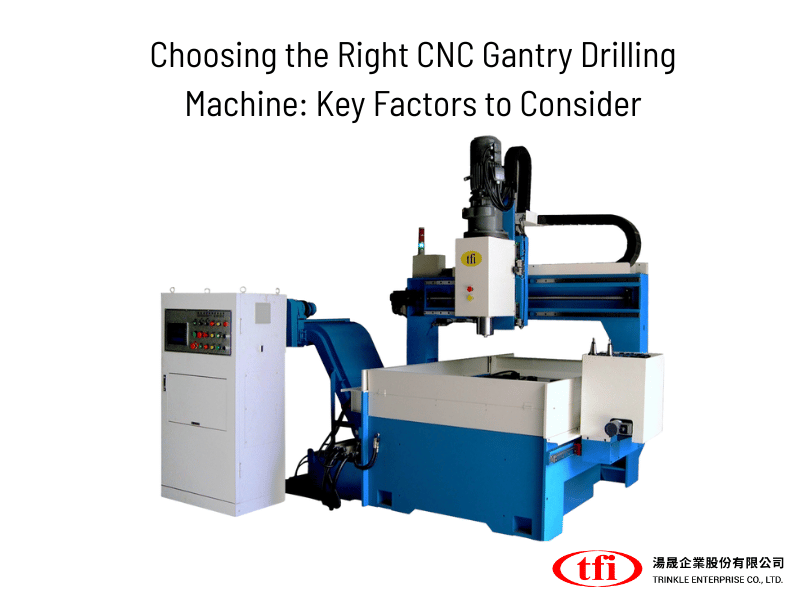

Choosing the Right CNC Gantry Drilling Machine: Key Factors to Consider
When it comes to industrial machinery, selecting the right CNC Gantry Drilling Machine can significantly impact production efficiency and precision.
These specialized machines are critical for processing tube plates, baffles, and large flanges in various industries, including petrochemical and construction.
We understand that choosing the optimal drilling system requires careful consideration of several key factors, including workpiece capacity and spindle performance.
By evaluating these crucial specifications and features, we can make an informed decision that aligns with our specific production requirements.
Key Takeaways
- Understand the importance of selecting the right CNC Gantry Drilling Machine for your industry.
- Consider the workpiece capacity and spindle performance when evaluating different machines.
- Evaluate the technical specifications and features of various drilling systems.
- Assess your specific production requirements to make an informed purchasing decision.
- Choose a machine that aligns with your manufacturing needs and enhances production efficiency.
Understanding CNC Gantry Drilling Machines
CNC gantry drilling machines are a cornerstone in modern manufacturing, particularly for industries that require precision drilling in large workpieces. Precision and scale come together in CNC gantry drilling machines, making them indispensable in various industrial applications.
What Is a CNC Gantry Drilling Machine?
CNC gantry drilling machines represent a specialized category of industrial equipment designed specifically for precision hole-making operations in large workpieces with computer numerical control. The defining characteristic of these machines is their gantry structure, which features a bridge-like frame that moves along the X-axis over a stationary worktable, providing exceptional stability during drilling operations.
Key Components and Structure
The key components of a CNC gantry drilling machine include the lathe bed work table, movable gantry, longitudinal slide carriage, numerical control slide board, drill power box, automatic chip removal system, and circulation cooling system. The gantry mobile structure is adopted, allowing the machine to cover a small area while maintaining a reasonable structural layout.
Advantages Over Other Drilling Systems
The gantry design offers significant advantages over traditional drilling systems. These advantages include the ability to process exceptionally large workpieces while maintaining high precision and occupying relatively compact floor space. CNC gantry drilling machines excel in industries requiring precise hole patterns in large metal plates, such as heat exchanger manufacturing, petrochemical equipment production, and structural steel fabrication for construction projects.
Workpiece Capacity and Size Considerations
When selecting a CNC gantry drilling machine, understanding its workpiece capacity is crucial for optimizing production. The machine's ability to handle various size requirements directly impacts its versatility and efficiency.
Maximum Workpiece Dimensions
Standard models typically accommodate plate sizes ranging from 2000x2000mm to 4000x3000mm. The maximum workpiece size can vary, with some machines handling dimensions up to 3000x3000mm or more, depending on the manufacturer and model.
Material Thickness Capabilities
The capacity to handle different material thicknesses is equally important. Most industrial-grade CNC gantry drilling machines can process steel plates up to 200mm thick, though this can vary.
Table Size and T-Slot Configuration
The worktable design, including its width and length, and T-slot configuration, affects how securely you can mount workpieces. A typical T-slot width is 22mm.
Considering both current and future production needs is essential when evaluating the table size and capacity of a CNC gantry drilling machine.
Spindle Specifications and Performance
The spindle is a crucial component of a CNC gantry drilling machine, directly influencing its performance and efficiency. The specifications of the spindle, including its power, speed, and taper type, play a significant role in determining the machine's drilling capabilities.
Spindle Power and Motor Ratings
The power rating of the spindle motor is a critical factor, typically ranging from 5.5kW to 7.5kW. This determines the machine's ability to process tough materials and create larger diameter holes efficiently. Our CNC gantry drilling machines feature a 5.5kW spindle motor, suitable for a wide range of drilling operations.
Rotation Speed and Adjustability
The rotation speed of the spindle, ranging from 120-560 RPM with frequency conversion technology, directly impacts drilling performance and material processing. Modern CNC drilling machines offer stepless speed adjustment, providing optimal cutting speeds for different materials and hole diameters.
Taper Type and Tool Compatibility
Most industrial-grade machines feature a Morse taper #4 spindle, establishing tool compatibility and affecting the types of drilling operations that can be performed. This taper type ensures versatility and ease of use.
Maximum Drilling Diameter
The maximum drilling diameter capacity, typically up to Φ50mm, determines the largest hole size the machine can produce in a single operation. This specification is crucial for understanding the machine's capabilities and limitations.
Axis Movement and Precision Factors
Axis movement is a critical factor in determining the operational range and production efficiency of CNC gantry drilling machines. The capabilities of these machines are directly influenced by their ability to move accurately along the X, Y, and Z axes.
X, Y, and Z Axis Travel Distances
The travel distances along the X, Y, and Z axes determine the maximum workpiece size that can be processed. A larger travel distance allows for the drilling of bigger workpieces, enhancing the machine's versatility.
Positioning and Re-positioning Accuracy
Positioning precision is crucial for accurate hole placement. High-quality CNC drilling machines maintain an accuracy of
Feed Rates and Movement Speed
Modern CNC drilling machines can achieve rapid positioning speeds of up to 8m/min, significantly reducing non-productive time. Feed rates during drilling operations are adjustable, typically ranging from 0-4000mm/min, allowing for optimization based on material and hole diameter.
Servo Motor Specifications
The servo motor specifications vary by axis, with the X-axis often using dual drive systems (2x1.8 kW motors) for synchronized gantry movement. The Y and Z axes use appropriately sized motors (1.3 kW and 0.85 kW, respectively) based on their load requirements.
Control Systems and Automation Features
When selecting a CNC gantry drilling machine, understanding its control system and automation features is crucial. The control system is the brain of the operation, dictating the machine's functionality and efficiency.
CNC System Options
Leading manufacturers offer various CNC system options, such as the FAGOR8055 or Mitsubishi systems. These systems provide different levels of functionality, programming flexibility, and user interface experiences. For instance, the FAGOR8055 CNC system is known for its reliability and advanced features.
Programming Software and Interface
Modern CNC systems feature Windows-based programming software with integrated CAD capabilities. This allows operators to quickly develop drilling patterns with visual previewing before actual machining begins, enhancing productivity and reducing errors.
Automation Capabilities
Automation capabilities vary significantly between machine models. Advanced systems offer features like automatic tool setting, edge finding, and workpiece center location, which dramatically reduce setup time and improve accuracy. These features are particularly valuable for processing large plates.
Tool Setting and Edge Finding Features
The machine is equipped with a spring center tool setting device and an edge finder device. These tools enable the machine to automatically locate the workpiece position and establish accurate reference points without time-consuming manual alignment procedures, thus improving efficiency and product quality.
The integration of PLC systems with the main CNC control provides enhanced safety features, process monitoring, and diagnostic capabilities. Many modern CNC drilling machines also feature multiple independent slide drilling power heads that can operate simultaneously or independently, significantly increasing production throughput for complex drilling patterns.
Additional Features and Accessories
Beyond the basic specifications, additional features and accessories play a crucial role in optimizing the functionality of CNC gantry drilling machines. These enhancements can significantly improve productivity, accuracy, and overall operational efficiency.
Chip Removal Systems
Effective chip removal is essential for maintaining continuous operation. Our machines feature a chain-plate type conveyor that operates at approximately 1m/min, efficiently clearing drilling debris from the work area. The chip removal system is powered by a 0.75kW motor, ensuring reliable performance.
Cooling and Lubrication Systems
Cooling and lubrication systems are vital for extending tool life and improving hole quality. Our CNC gantry drilling machines are equipped with a 0.43kW cooling pump motor, maintaining optimal cutting temperatures during operation. Automatic lubrication devices for guide rails and lead screw nuts reduce maintenance requirements while extending their service life.
Safety Features
Modern CNC gantry drilling machines incorporate sophisticated safety features, including protective covers for moving components, emergency stop systems, and operational interlocks. These features prevent accidents and protect both operators and equipment.
Available Accessories and Upgrades
A range of accessories is available to further enhance the capabilities of our CNC gantry drilling machines. These include air guns, common tools, proximity switches, reducing sleeves (No.5#-4#, 4#-3#, 3#-2#, 2#-1#), and quick change wrenches for drill heads. Different model variants, such as TPLD2020, TPLD2525, and PLD3030A, offer varying workpiece capacities and chip handling capabilities to match specific production requirements.
- Automatic chip removal and coolant circulation cooling systems
- Stainless steel telescopic protective covers for X-axis guide rails
- Flexible protective covers for Y-axis components
- Waterproof baffles around the workbench
Conclusion: Making Your Final Decision
As we finalize our selection of a CNC gantry drilling machine, it's crucial to weigh the factors that directly impact our manufacturing processes. The ideal machine should align with our production needs, whether we're focused on tube plate drilling for heat exchangers or structural steel components.
Consider the versatility of the machine and its ability to handle various materials and operations. Evaluating the total cost of ownership, including maintenance and power consumption, is also vital. For industries requiring precise hole patterns across large steel plates, the gantry design's precision is particularly valuable.
When making our final decision, we should consider future production needs and request demonstrations using our specific materials to verify the machine's performance. By doing so, we can ensure that our chosen CNC gantry drilling machine meets our requirements and maximizes our return on investment.
